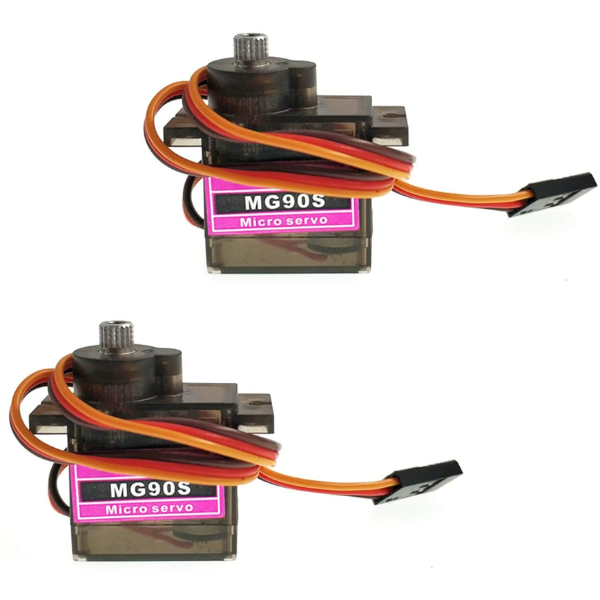

Power Up Your Projects with the Tower-Pro MG90S Mini Digital Servo Motor
Introducing the Tower-Pro MG90S, a versatile and affordable servo motor perfect for a wide range of applications. This compact and powerful servo offers precise control and reliable performance, making it an excellent choice for your robotics, RC projects, and more.
Key Features:
- 180° Rotation: Provides a full range of motion for precise control.
- High Resolution: Delivers accurate positioning for consistent performance.
- Fast Response Time: Offers quick and responsive adjustments.
- Constant Torque: Maintains consistent torque throughout the entire travel range.
- Strong Holding Power: Holds positions securely for stability.
- Compact Design: Small and lightweight for easy integration into your projects.
Applications:
- RC aircraft
- Robotics
- Automation
- DIY projects
- And more!
Elevate your projects with the Tower-Pro MG90S mini digital servo motor.
DATA SHEET AND USECASE
Key Specification:
- Operating Voltage: 4.8V – 6.0V
- Torque:
- 1.8 kg·cm @ 4.8V
- 2.2 kg·cm @ 6.0V
- Speed:
- 0.10 sec/60° @ 4.8V
- 0.08 sec/60° @ 6.0V
- Rotation Angle: 0° – 180°
- Dead Band Width: ≤5μs
- Operating Temperature: -30°C to +60°C
- Weight: 13.4g
- Gear Material: Metal
- Motor Type: Coreless
- Size: 22.8mm × 12.2mm × 28.5mm
